The Walls Are On Fire

There’s no denying the fact that firewalls are a necessary part of modern perimeter security. NAT isn’t a security construct. Attackers have the equivalent of megaton nuclear arsenals with access to so many DDoS networks. Security admins have to do everything they can to prevent these problems from happening. But one look at firewall market tells you something is terribly wrong.

Who’s Protecting First?

Take a look at this recent magic polygon from everyone’s favorite analyst firm:

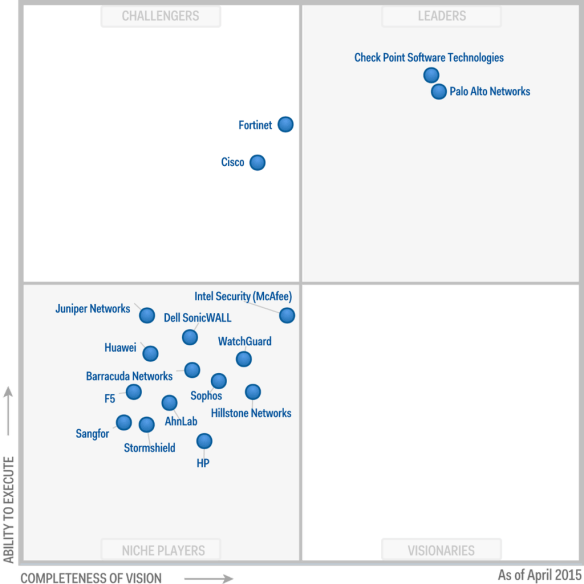

FW Magic Polygon.  Thanks to @EtherealMind.

FW Magic Polygon. Thanks to @EtherealMind.

I won’t deny that Checkpoint is on top. That’s mostly due to the fact that they have the biggest install base in enterprises. But I disagree with the rest of this mystical tesseract. How is Palo Alto a leader in the firewall market? I thought their devices were mostly designed around mitigating internal threats? And how is everyone not named Cisco, Palo Alto, or Fortinet regulated to the Niche Players corral?

The issue comes down to purpose. Most firewalls today aren’t packet filters. They aren’t designed to keep the bad guys out of your networks. They are unified threat management systems. That’s a fancy way of saying they have a whole bunch of software built on top of the packet filter to monitor outbound connections as well.

Insider threats are a huge security issue. People on the inside of your network have access. They sometimes have motive. And their power goes largely unchecked. They do need to be monitored by something, whether it be an IDS/IPS system or a data loss prevention (DLP) system that keeps sensitive data from leaking out. But how did all of those devices get lumped together?

Deploying security monitoring tools is as much art as it is science. IPS sensors can be placed in strategic points of your network to monitor traffic flows and take action on them. If you build it correctly you can secure a huge enterprise with relatively few systems.

But more is better, right? If three IPS units make you secure, six would make you twice as secure, right? No. What you end up with is twice as many notifications. Those start getting ignored quickly. That means the real problems slip through the cracks because no one pays attention any more. So rather than deploying multiple smaller units throughout the network, the new mantra is to put an IPS in the firewall in the front of the whole network.

The firewall is the best place for those sensors, right? All the traffic in the network goes through there after all. Well, except for the user-to-server traffic. Or traffic that is internally routed without traversing the Internet firewall. Crafty insiders can wreak havoc without ever touching an edge IPS sensor.

And that doesn’t even begin to describe the processing burden placed on the edge device by loading it down with more and more CPU-intensive software. Consider the following conversation:

Me: What is the throughput on your firewall?


Them: It’s 1 Gbps!


Me: What’s the throughput with all the features turned on?


Them: Much less than 1 Gbps…

When a selling point of your UTM firewall is that the numbers are “real”, you’ve got a real problem.

What’s Protecting Second?

There’s an answer out there to fix this issue: disaggregation. We now have the capability to break out the various parts of a UTM device and run them all in virtual software constructs thanks to Network Function Virtualization (NFV). And they will run faster and more efficiently. Add in the ability to use SDN service chaining to ensure packet delivery and you have a perfect solution. For almost everyone.

Who’s not going to like it? The big UTM vendors. The people that love selling oversize boxes to customers to meet throughput goals. Vendors that emphasize that their solution is the best because there’s one dashboard to see every alert and issue, even if those alerts don’t have anything to do with each other.

UTM firewalls that can reliably scan traffic at 1 Gbps are rare. Firewalls that can scan 10 Gbps traffic streams are practically non-existant. And what is out there costs a not-so-small fortune. And if you want to protect your data center you’re going to need a few of them. That’s a mighty big check to write.

Tom’s Take

There’s a reason why we call it Network Function Virtualization. The need for the days when you try and cram all the possible features you could think of onto a single piece of hardware are over. We don’t need complicated all-in-one boxes that have insanely large CPUs. We have software constructs that can take care of all of that now.

While the engineers will like this brave new world, there are those that won’t. Vendors of the single box solutions will still tell you that their solution runs better. Analyst firms with a significant interest in the status quo will tell you NFV solutions are too far out or don’t address all the necessary features. It’s up to you to sort out the smoke from the flame.

Cisco ASA CX 9.1 Update

Cisco LogoEvery day I seem to get three or four searches looking for my ASA CX post even though it was written over a year ago.  I think that’s due in part to the large amount of interest in next-generation firewalls and also in the lack of information that Cisco has put out there about the ASA CX in general.  Sure, there’s a lot of marketing.  When you try to dig down into the tech side of things though, you find yourself quickly running out of release notes and whitepapers to read.  I wanted to write a bit about the things that have changed in the last year that might shed some light on the positioning of the ASA CX now that it has had time in the market.

First and foremost, the classic ASA as you know it is gone.  Cisco made the End of Sale announcement back in March.  After September 16, 2013 you won’t be able to buy one any longer.  Considering the age of the platform this isn’t necessarily a bad thing.  Firstly, the software that’s been released since version 8.3 has required more RAM than the platform initially shipped with.  That makes keeping up with the latest patches difficult.  Also, there was a change in the way that NAT is handled around the 8.3/8.4 timeframe.  That lead to some heartache from people that were just getting used to the way that it worked prior to that code release.  Even though it behaves more like IOS now (i.e. the right way), it’s still confusing to a lot of people.  When you’ve got an underpowered platform that requires expensive upgrades to function at a baseline level, it’s time to start looking at replacing it.  Cisco has already had the replacement available for a while in the ASA-X line, but there hasn’t been a compelling reason to cause customers to upgrade there existing boxes.  The End of Sale/End of Life notice is the first step in migrating the existing user base to the ASA-X line.

The second reason the ASA-X line is looking more attractive to people today is the inclusion of ASA CX functionality in the entire ASA-X line.  If you recall from my previous post, the only ASA capable of running the CX module was the 5585.  It had the spare processing power needed to work the kinks out of the system during the initial trial runs.  Now that the ASA CX software is up to version 9.1, you can install it on any ASA-X appliance.  As always, there is a bit of a catch.  While the release notes tell you that the ASA CX for the mid-range (non 5585) platforms is software based, please note that you need to have a secondary solid state disk (SSD) drive installed in the chassis in order to even download the software.  If you are running ASA OS 9.1 and try to pull down the ASA CX software, you’re going to get an error about a missing storage device.  Even if you purchased the software licensing for the ASA CX, you won’t get very far without some hardware.  The part you’re looking for is ASA5500X-SSD120=, which is a spare 120GB SSD that you can install in the ASA chassis.  If you don’t already have an ASA-X and want the ASA CX functionality, you’re much better off ordering one of the bundle part numbers.  That’s because it includes the SSD in the chassis preloaded with a copy of the ASA CX software.  Save yourself some effort and just order the bundle.

Another thing that I found curious about the 9.1 release of the ASA CX software was in the release notes.  As previously mentioned, the UI for the ASA CX is a copy of Cisco Prime Security Manager (PRSM), also pronounced “prism.”  At first, I just thought this meant that Cisco had borrowed concepts from PRSM to make the ASA CX UI a bit more familiar to people.  Then I read the 9.1 release notes.  Those notes are combined for the ASA CX and PRSM 9.1.  You’d almost never know it though, outside of a couple of mentions for the ASA CX.  Almost the entire document references PRSM, which makes sense when you think about it.  That really did clear up a lot of the questions I had about the ASA CX functionality.  I wondered what kind of strange parallel development track Cisco had used to come up with their answer in the next generation firewall space.  I was also worried that they had either borrowed or licensed software from a third part and that their effort would end up as doomed as the ASA UTM module that died a painful death thanks to Trend Micro‘s strange licensing.

ASA CX isn’t really a special kit.  It’s an on-box copy of PRSM.  The ASA is configured with a rule to punt packets to PRSM for inspection before being shunted back for forwarding.  No magic.  No special sauce.  Just placing one product inside another.  When you think about how IDS/IPS has worked in the ASA for the past several years I suppose it shouldn’t come as too big of a shock.  While vendors like Palo Alto and Sonicwall have rewritten their core OS to take advantage of fast next generation processing, Cisco is still going back to their tried-and-true method of passing all that traffic to a module.  In this case, I’m not even sure what that “module” is in the midrange devices, as it just appears to be an SSD for storing the software and not actually doing any of the processing.  That means that the ASA CX is likely a separate context on the ASA-X.  All the processing for both packet forwarding and next generation inspection is done by the firewall processor.  I know that that the ASA-X has much more in the processing department than its predecessor, but I wonder how much traffic those boxes are going to be able to take before they give out?

Tom’s Take

Cisco is playing catch up in the next generation market.  Yes, I understand that the term didn’t even really exist until Palo Alto started using it to differentiate their offering.  Still, when you look at vendors like Sonicwall, Fortinet, and even Watchguard, you see that they are embracing the idea of expanding unifed threat management (UTM) into a specific focus designed to let IT people root out traffic that’s doing something it’s not supposed to be.  Cisco needs to take a long hard look at the ASA-X platform.  If it is selling well enough against units like the Juniper SRX and the various Checkpoint boxes then the next generation piece needs to be spun out into a different offering.  If the ASA-X is losing ground, what harm could there be in pushing the reset button and turning the whole box into something a bit more grand that a high speed packet filter?  The ASA CX is a great first step.  But given the lack of publicity and difficulty in finding information about it, I think Cisco is in danger of stumbling before the race is even going.
